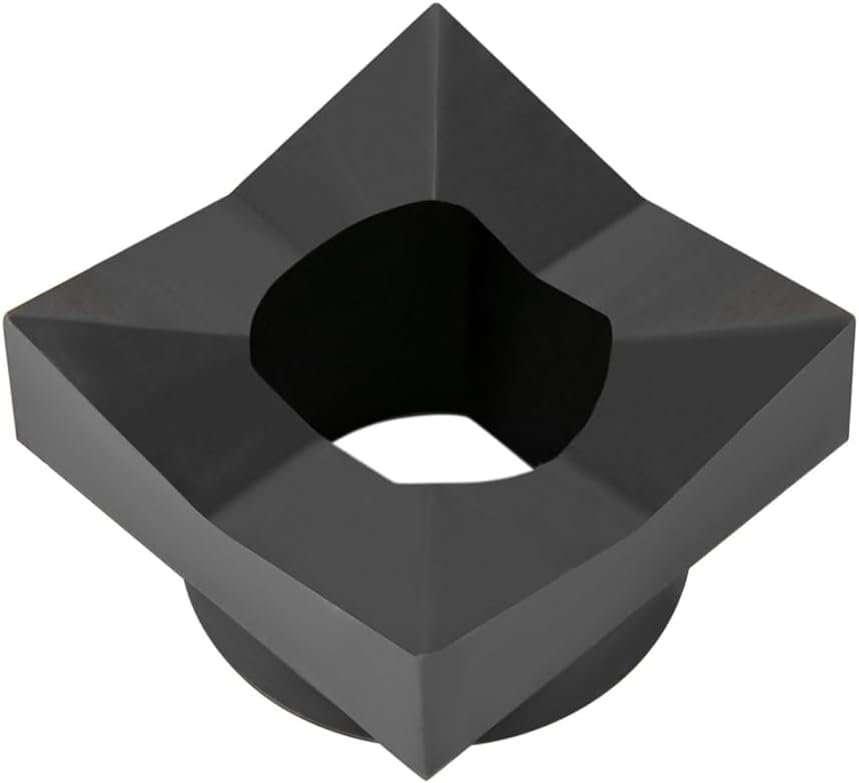

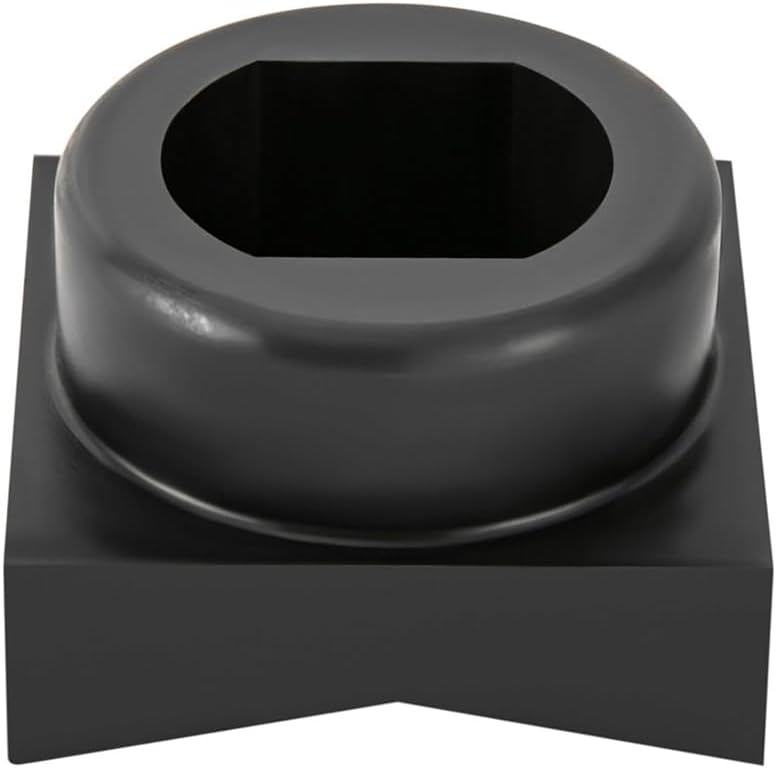

Manual Square Hydraulic Hole Punch Knockout Die, Cr40 Steel Hydraulic Hole Punch Die Hydraulic Punching Machine for Drilling in The Manufacturing Industry Black,45x45cm

Product description The hydraulic punching die is made of high-quality Cr 40, blackened and heat treated for high strength, heat resistance,corrosion resistance and durability.High dimensional accuracy and easy operation can greatly enhance the efficiency of work. It is especially suitable for drillers of steel and iron plates and isa good helper for them. Come and bring it home!How to Use1. First, open a 1.08-in round hole on the board.2. Then put the plate on the lower mold of the product, and the upper mold on the plate.3. The nut on the tie rod is to turn tight to fix the mold.4. Then with the manual pump press up and down, the mold will slowly together. The middle plate will fall.5. Finally, open the mold and take out the plate from the middle.SpecificationsMaterial: Cr 40Surface Treatment: Blackening Treatment, Heat TreatmentColor: BlackShape: SquareType: DieApplicable Material: Stainless Steel Plate, Iron PlateOperation Mode: Manual/ElectricMax. Plate Thickness(Steel): 1.5mm/0.06inMax. Plate Thickness(Iron): 3mm/0.12inDie Clearance: 0.6-0.7mm/0.024-0.028inGross Weight: 3kg/6.61lbsNet Weight: 2.8kg/6.17lbsProduct Size: 45*45mm/1.77*1.77inPackage Size: 10*10*4cm/4*4*1.5inPackage Included:1x hydraulic Hole Punch Die Manufacturer Contact Information Yidubid

• High Quality: It is made of high-quality Cr 40 by blackening and heat treatment, featuring high strength, heat resistance and durability, which can be reused.
• High Efficiency: This product adopts high-precision dimensions that can drill holes in steel plates(within 1.5mm) and iron plates(within 3mm), and using it with cylinders and hydraulic pumps (not included) ensures efficient drilling and improves processing efficiency.
• Dual Compatibility: It can be operated manually or electrically with the machine(not included), which greatly facilitates machine selection for the operator.
• Easy To Use: After receiving the product, it does not need to be installed, all you just need to do is follow the operating procedures to operate it, which is convenient and fast. In addition, it can be molded by opening the hole and does not require secondary processing.
• Application: The hydraulic knockout punch die is mainly suitable for drilling in the manufacturing industry, especially for drilling operations in thin plates such as steel and iron sheets. It can be used with cylinders and hydraulic pumps.
