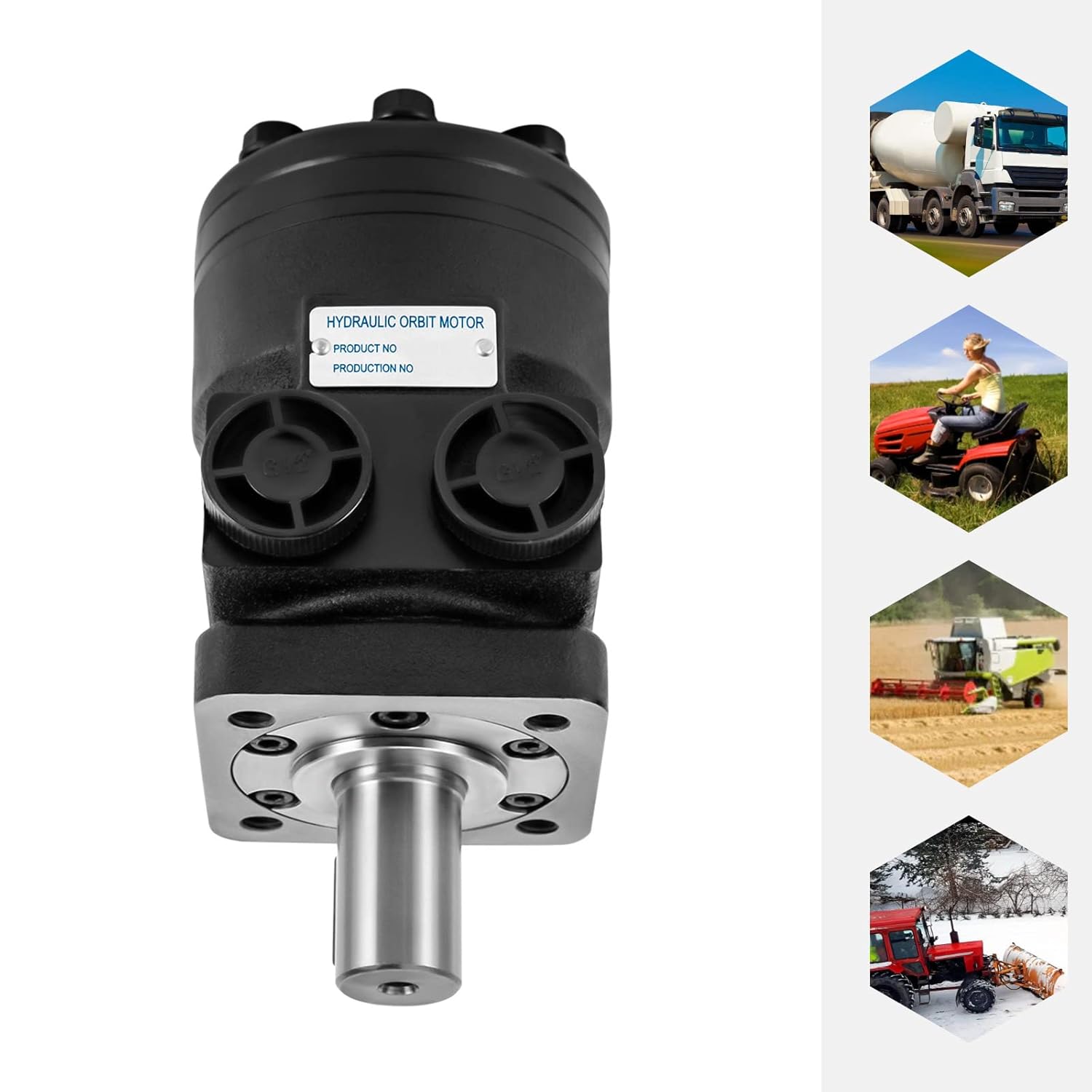

Hydraulic Motor 4 Bolt Flange Hydraulic Pump Replacement Part Hydraulic Pump High Speed Hydraulic Equipment for Char-Lynn 101-1001-009, Eaton 101-1001 1 Inch Straight w/Woodruff Key O-Ring

Hydraulic Motor 4 Bolt Flange Hydraulic Pump Replacement Part Hydraulic Pump High Speed Hydraulic Equipment for Char-Lynn 101-1001-009, Eaton 101-1001 1 Inch Straight w/Woodruff Key O-RingPackage Included1 * Hydraulic MotorSpecificationMaterial: Cast Iron, Low Carbon Alloy SteelColor: BlackProcess: Powder MetallurgyAssembly Required: NoCompatible: for Char-Lynn 101-1001-009 and Eaton 101-1001Shaft: 2.54cm/1 Inch Straight w/Woodruff Key O-RingMount: 4 Bolt FlangePort Size: ½ NPTF Displacement: 50ML/R 1.69Oz/RFlow Rate: Continuous: 45LPM; Intermittent: 50LPMSpeed: Continuous: 879rpm; Intermittent: 975rpmPressure: Continuous: 12.5MPA; Intermittent: 16.5MPATorque: Continuous: 81N*M; Intermittent: 108N*MGross Weight: 5.5kg/ 12.13 lbs Product Size: 10*10*19.3cm/ 3.94*3.94*7.6 inPackage Size: 26*13*13cm/ 10.24*5.12*5.12inNotes1.Please allow the slight color difference caused by the shooting light and the 1-3 cm error due to manual measurement, and make sure you do not mind before ordering.

• High-quality Material: This hydraulic motor adopts a powder metallurgy valve disc and low carbon alloy steel output shaft, with high wear resistance, high precision, and long service life
• Good Sealing: The oiil seal adopts three layers of the sealing ring to bear pressure, which can effectively prevent oiil leakage
• High Precision: The precision processed stator and rotor whose flatness error does not exceed 0.08 inches have high precision
• Strong Pressure Resistance: The S-type bearing shaft has a strong radial force and high-pressure resistance, which can effectively extend the service life of the hydraulic motor
• Powerful Power: High speed (continuous: 879rpm; intermittent: 975rpm) and high torque (continuous: 81N*M; intermittent: 108N*M) bring you greater power
